Executive Overview

However, operating at this hyper-scale exposes a fundamental blind spot in standard infrastructure observability: traditional monitoring tools fail to accurately quantify true data freshness. For years, platform engineering teams relied on standard consumer lag metrics, such as consumer offset lag (records-lag-max) and Hudi’s native kafkaDelayCount. While these metrics consistently indicated that consumer applications were matching Kafka’s ingestion speed, downstream analytics teams frequently raised alarms over data that was hours out of date.

The core issue was not Kafka throughput or system resource starvation; it was a profound visibility gap. Because the Apache Hudi Delta Streamer manages its own internal checkpoints—stored directly alongside table data in Amazon S3 rather than utilizing standard Kafka consumer group offset tracking—traditional consumer lag monitors remained entirely blind. External tracking tools like LinkedIn’s Burrow could not determine whether Hudi had successfully committed ingested data to the lake. To bridge this gap, Twilio engineered an innovative, non-invasive metrics reporter. By redefining lag not as an offset count, but as a unit of time, the company established a precise, actionable framework to enforce custom freshness SLAs without introducing operational overhead to live production pipelines.

Detailed Chronology: Uncovering the Visibility Gap

The journey toward Twilio’s advanced metrics reporter began with a persistent operational paradox. Engineers observed healthy Kafka consumers reporting near-zero offset lag, yet machine learning models and executive dashboards repeatedly ingested stale data.

The Illusion of Health in Legacy Metrics

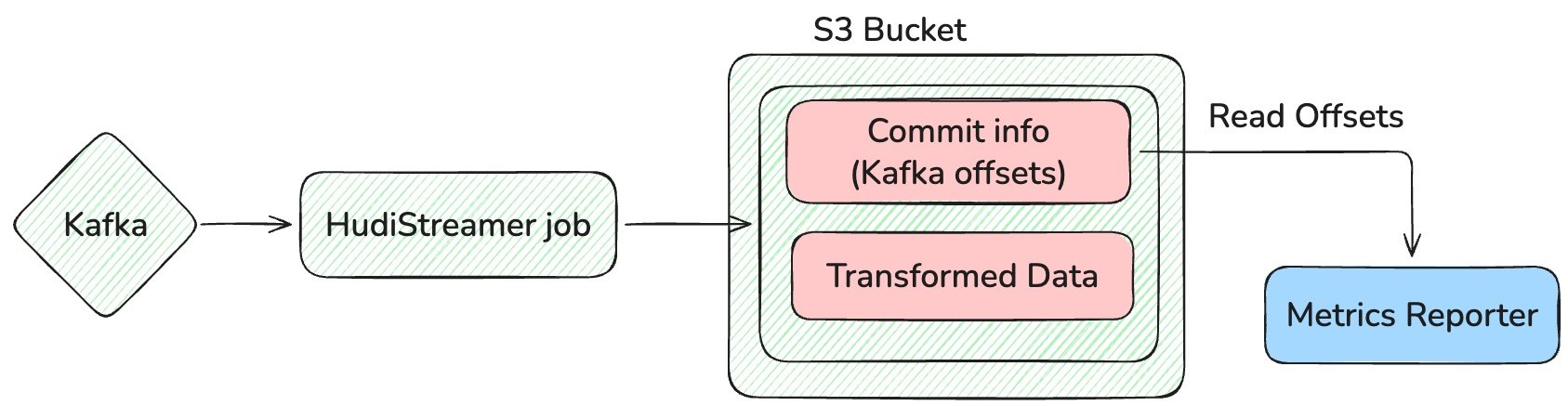

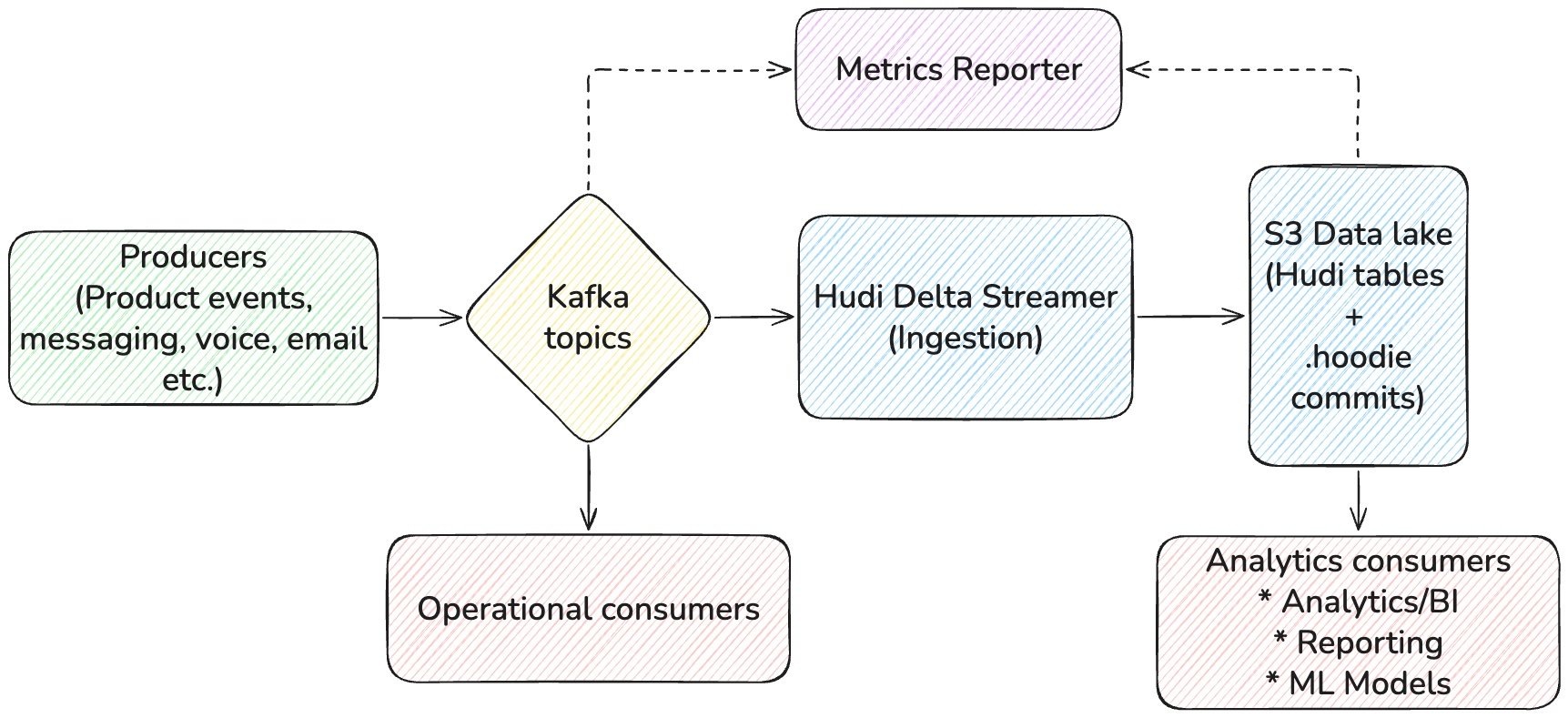

In a standard Apache Kafka and Apache Hudi architecture, ingestion pipelines rely on the Hoodie Delta Streamer (or HoodieStreamer) to consume data streams from Kafka topics and persist them into an Apache Hudi data lake on cloud object storage (S3). Throughout this continuous ingestion lifecycle, the framework utilizes an internal checkpoint mechanism. This checkpoint represents the exact topic offsets or timestamps per partition that have been successfully processed, written, and committed to long-term storage.

Beyond Offset Lag: Computing Time in Queue for Apache Hudi Data Lake Pipelines at Petabyte Scale

Standard infrastructure monitoring systems are designed to query consumer group metadata to determine offset lag. However, Hudi stores its checkpoints independently within the .hoodie/ timeline directory on S3. Because these checkpoints are isolated from standard Kafka consumer group offset tracking, utilities like Burrow do not populate or read them by default. Consequently, traditional dashboards indicated that consumers were keeping pace with incoming message streams, masking the reality that downstream persistence operations were lagging significantly behind.

The Migration Overlap and Multi-Writer Complexity

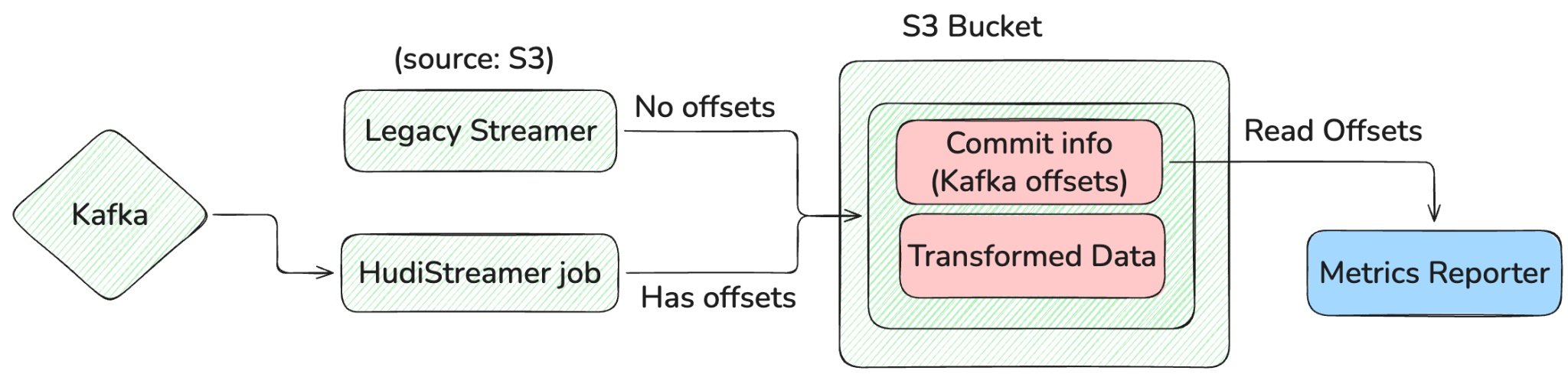

The visibility challenge intensified during large-scale architectural migrations. In production environments, data lakes frequently support multiple writers simultaneously. Twilio encountered this complexity when transitioning legacy ingestion setups to modern frameworks.

Under the legacy architecture, data flowed through a multi-tier pipeline: an initial consumer read raw events from Kafka and landed them unformatted on S3; a secondary pipeline then read those S3 files, executed heavy transformations, and finally committed the processed records to the Hudi table. Because the second-tier pipeline was sourced from S3 rather than directly from Kafka, its commit metadata lacked the essential deltastreamer.checkpoint.key.

Simultaneously, Twilio deployed a modern ingestion framework that read directly from Kafka and wrote directly to the same Hudi table, embedding valid checkpoint keys in its commits. During the migration overlap, both systems wrote to the shared table. When the legacy pipeline generated the most recent commit, automated scripts searching for checkpoint metadata failed to find any. Lacking a valid reference point, naive monitoring algorithms defaulted to extreme error values, triggering massive, false-positive spikes in data lag metrics across internal monitoring platforms.

Iterative Engineering and the Evolution of the Solution

To resolve these compounding issues, Twilio’s engineering team embarked on an iterative development cycle, learning critical lessons through rigorous production deployment:

Beyond Offset Lag: Computing Time in Queue for Apache Hudi Data Lake Pipelines at Petabyte Scale
  1. The Epoch Timestamp Trap: Initial algorithmic iterations calculated lag by subtracting the Hudi commit timestamp from the latest Kafka record timestamp. When the system encountered commits without checkpoint metadata, instead of throwing an error, it defaulted silently to Unix epoch zero (19700101000000000). Formatted as yyyyMMddHHmmssSSS, this resulted in a millisecond value of zero, causing lag metrics to explode into astronomical, meaningless integers. This failure proved that silence or metric suppression is vastly superior to generating hallucinated values.
  2. The Walk-Back Algorithm: To address the multi-writer migration conflict, the team abandoned the assumption that the absolute latest commit in the Hudi timeline is always the correct reference point. They engineered a depth-based reverse-chronological search. The metrics reporter now walks backward through the Hudi active timeline—up to a configurable MAX_COMMIT_DEPTH (defaulting to 100 commits)—skipping legacy commits until it encounters the most recent commit containing a valid deltastreamer.checkpoint.key.
  3. Handling Missing Timestamps: Production systems occasionally encounter Kafka producers that omit message timestamps, defaulting instead to the sentinel value -1 (ConsumerRecord.NO_TIMESTAMP). Attempting to compute time-based deltas against this sentinel resulted in corrupted metrics. Engineers implemented strict guards to detect -1 timestamps and explicitly suppress reporting for affected partitions.

Supporting Context & Metrics: Architecture and Implementation

Twilio’s solution rests on a sophisticated yet lightweight external observation layer known as the Metrics Reporter. Operating independently from active ingestion paths, this tool requires zero modifications to producers, Kafka clusters, or active Hudi Delta Streamer pipelines.

How the Metrics Reporter Works

Running every fifteen minutes via AWS EventBridge on Amazon EMR Serverless, the metrics reporter executes a precise four-step evaluation algorithm for every monitored pipeline:

  1. Read the Hudi Timeline: The reporter utilizes the Apache Hudi SDK (HoodieTableMetaClient) to inspect the table’s .hoodie/ timeline directory on Amazon S3. Utilizing Hadoop’s S3AFileSystem—powered by configuration parameters borrowed from an active Spark runtime session (without executing any Spark data processing workloads)—the system retrieves completed commits.
  2. Extract Checkpoint Offsets: Walking backward through the timeline up to MAX_COMMIT_DEPTH, the reporter identifies the latest commit possessing a deltastreamer.checkpoint.key. It parses this metadata to extract the exact next-to-read per-partition offsets committed to S3.
  3. Seek and Poll Kafka: Utilizing a dedicated Kafka consumer instance configured with a separate consumer group ID and enable.auto.commit=false (ensuring zero interference with ingestion pipelines or offset rebalancing), the reporter assigns the target partitions and seeks directly to the checkpoint offsets. It polls the topic with a bounded 500-millisecond timeout to retrieve the first unconsumed message candidate per partition.
  4. Compute Time-in-Queue: The algorithm evaluates the timestamps of the retrieved candidate records across all partitions. It selects the earliest timestamp—representing the oldest unconsumed message waiting to be committed to the lake—and calculates the time delta against current UTC time:

$$textLag = maxleft(0L, textCurrentTimetextms – textRecordTimestamptextmsright)$$

Core Implementation Code

The operational logic is encapsulated within clean, robust Java components.

Fetching the Hudi Checkpoint from S3:

Beyond Offset Lag: Computing Time in Queue for Apache Hudi Data Lake Pipelines at Petabyte Scale
public static HoodieResult findLatestCommitWithCheckpoint(String datasetName, String basePath, int maxCommits)
    HoodieActiveTimeline timeline = getActiveTimeline(basePath);
    HoodieTimeline commits = timeline.getCommitsTimeline().filterCompletedInstants();

    int depth = Math.min(maxCommits, commits.countInstants());

    for (int n = 0; n < depth; n++)
        HoodieInstant commit = commits.nthFromLastInstant(n).get();
        try
            HoodieCommitMetadata metadata = HoodieCommitMetadata.fromBytes(
                timeline.getInstantDetails(commit).get(), HoodieCommitMetadata.class);

            if (metadata.getMetadata(CHECKPOINT_KEY) != null)
                return new HoodieResult(metadata, commit.getTimestamp(), datasetName, n);

         catch (Exception e)
            // Log parsing exception and continue walk-back


    return new HoodieResult(-1); // No valid checkpoint found within depth

Executing the Core Lag Computation:

// Step 1: Read Hudi timeline from S3 and extract checkpoint offsets
HoodieResult hudiResult = findLatestCommitWithCheckpoint(tableName, tableBasePath, maxCommitDepth);

if (hudiResult.getCommitTime() == -1)
    // Suppress metric reporting to prevent false-positive reporting
    return;


final Map<TopicPartition, Long> checkpointOffsets = hudiResult.getPartitionToCheckpoint()
    .entrySet().stream()
    .collect(Collectors.toMap(
        e -> new TopicPartition(topic, e.getKey()),
        Map.Entry::getValue
    ));

// Step 2 & 3: Seek to checkpoint offset and read the next available message
final Optional<ConsumerRecord<String, String>> nextRecord = kafkaClient.nextRecord(topic, checkpointOffsets);

// Step 4: Compute time-in-queue and emit SLA ratio
nextRecord.ifPresent(record ->
    if (record.timestamp() == -1)
        return; // Skip records with missing Kafka timestamps

    long currentTimeMs = OffsetDateTime.now(Clock.systemUTC()).toInstant().toEpochMilli();
    long lagMillis = Math.max(0L, currentTimeMs - record.timestamp());
    long lagSeconds = Duration.ofMillis(lagMillis).getSeconds();

    // Emit lagSeconds and SLA breach ratio to metrics telemetry
);

Official Perspectives and Operational Philosophy

Twilio’s engineering leadership emphasizes that modern observability requires shifting from reactive infrastructure monitoring to proactive service-level agreement (SLA) management.

Redefining SLAs as a Graded Ratio

Rather than treating SLA compliance as a binary state—where systems flip abruptly from green to red only after an outage occurs—Twilio engineered a graded SLA ratio framework. Pipeline owners define freshness expectations via onboarding configurations:

metadata:
  # Alert if data freshness exceeds 30 minutes
  slaInMinutes: 30

Internally, the metrics reporter converts this threshold into seconds and computes an SLA Ratio:

$$textSLA Ratio = minleft(1.0, fractextLagtextsecondstextSLA Thresholdtextsecondsright)$$

Beyond Offset Lag: Computing Time in Queue for Apache Hudi Data Lake Pipelines at Petabyte Scale

Capped at 1.0 (representing a full breach), this ratio mirrors Site Reliability Engineering (SRE) error-budget burn-rate methodologies. Engineering teams can establish warning thresholds at 0.7 (70% of the allocated SLA window) and critical alerts at 1.0. This graduated visibility provides teams with valuable leading indicators, allowing them to investigate sluggish pipelines, partition skews, or resource constraints well before downstream business stakeholders experience data disruptions.

Future Outlook

The architectural pattern pioneered by Twilio establishes a robust blueprint for real-time data lake observability. By shifting the definition of lag from static consumer offsets to time-based ingestion deltas, organizations can reliably audit complex streaming architectures without imposing instrumentation overhead on core production systems.

As Twilio continues to evolve its data infrastructure, the engineering organization is actively expanding this observability pattern across emerging data lakehouse technologies. Ongoing initiatives include:

  • Apache Iceberg Migration: Adapting the timeline-inspection and offset-seeking framework to support Apache Iceberg table formats as data workloads migrate away from legacy Hudi architectures.
  • Advanced Anomaly Detection: Integrating open-source statistical and machine learning anomaly detection libraries—such as Facebook Prophet or Zillow Luminaire—to dynamically adjust freshness thresholds based on historical traffic patterns rather than relying exclusively on static YAML configurations.
  • Proactive Commit Depth Monitoring: Exposing commit depth (the number of historical commits evaluated during the timeline walk-back) as a primary operational metric, enabling automated identification of degraded upstream writer performance before freshness SLAs are compromised.

Through these advancements, Twilio demonstrates that maintaining absolute reliability and precision at a scale of trillions of monthly records requires not just raw computing power, but intelligent, non-invasive architectural visibility.
